GerritForge helps Gerrit 3.0 stability

Gerrit 3.0 plan announced: we need stabilisation now

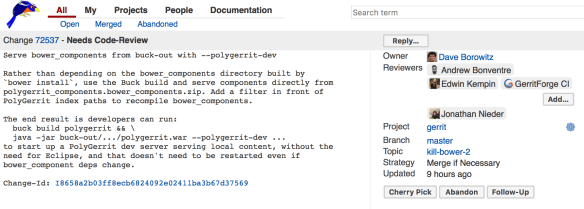

Screen Shot 2015-11-23 at 09.52.19

Gerrit 3.0 plan and its NoteDB reviews have been officially announced at the Gerrit User Summit 2015. It is already available as an experimental feature in the current Gerrit master but it needs much more stability in order to be officially supported for production.
GerritForge decided to help and reuse its existing continuous integration system to validate every Gerrit patch set against the current and the new NoteDB review persistence back-end in order to avoid regressions during the 2.13 and 3.0 development

Pre-commit validation by GerritForge CI

If you have posted a patch to in November, you may have hopefully received a Verified+1 from a strange user with a Diffy logo on the side.
GerritForge’s provided CI on fetches automatically every patch-set pushed to and triggers a slightly modified Gerrit build with the purpose of checking whether the code change introduces a regression or not. This may seem at first sight a quite normal Gerrit to Jenkins job integration, however implementing it on top of Google’s multi-master replicated installation was not a piece of cake.

Gerrit Trigger plugin limitations on multi-master setups

Jenkins has already an out-of-the-box integration with Gerrit provided by the Gerrit Trigger plugin maintained by Robert Sandell – Cloudbees. It leverages the Gerrit stream events through an SSH channel and make use of Gerrit REST API to action them according to the build result.
The Google’s Gerrit setup, however, is not a trivial one-node installation and is further limited by the security constraints of the Google infrastructure, which does not allow any incoming SSH connectivity.
Additionally all concept of “getting the events in a stream” isn’t going to work when events can come concurrently from multiple places at the same time: who is going to define the “global ordering” and how to put all those events in a single TCP/IP Socket? Even UDP would not work in this case because SSH channel requires confidentiality between two and only two peers.

Alternatives to SSH

During the hackathon, other approaches have been discussed by Shawn Pearce, including the use of HTTP WebSockets (or Cometd) for fetching events without the need of an SSH connection. Events are still distributed and generated by multiple masters all the time, and the Jenkins plugin would then have the onus of contacting all the Gerrit servers and keep a connection opened to all of them. This is clearly not going to work because the number of servers, their IPs and locations may change at any time and the solution would eventually be in danger of losing precious events.

Back to polling

The only solution we envisaged was to fall back to a polling logic where Jenkins ever 10 minutes is asking Gerrit “what’s new since last time we spoke?”. This solution goes against the main reason the Gerrit Trigger plugin was designed: avoiding SCM polling. It is, however, a much better and optimised polling strategy and let’s see why.

Query and then fetch

The typical Git SCM polling relies on fetching all references every poll interval and detect if new Git commits are available. This is notably slow and generates a huge overhead on the Git server. The approach we took is quite different and makes use of the Gerrit search capabilities that are way faster and more powerful than a simple Git fetch.
Jenkins first ask Gerrit the list of changes and associated commit-IDs involved in any event since the last polling time: the result may include patchsets that have been already built to avoid having any gaps between polling intervals. The search is fast and implemented in … you know, Google is a search company isn’t it?
Once the list of candidate commit-ids is identified, Jenkins goes through all of them and checks using the Gerrit REST-API:
– has it been build during my previous execution?
– has it been already accepted (or rejected) by me?
The Commit-IDs that results as not being checked before and not yet validated are then used to trigger a specific job parametrised on:
– Specific branch
– Specific change ref-spect
Fetching is performed avoiding any wildcard and the corresponding load on the Git server is minimum. Fetch (Git protocol) + build (using Buck) + test (unit + integration) + review feedback (REST API) is taking an average of 5 minutes, which is an amazing result if you consider the size of the Gerrit project and the typical slow speed of a default Jenkins Git fetch.

The bottom line

Using the query + fetch approach, which seemed a bit slow and old-fashioned at the beginning, was eventually very simple and successful. Instead of setting up SSH hostkey verification, key exchange and ad-hoc channels, the only configuration needed is a valid Gerrit user and the HTTPS endpoint URL, the same used for cloning the code.
The solution is much more reliable as SSH channels are notably unstable and consume server threads. The only drawback is the slight delay between the patch-set upload the start of the build (at max 10 minutes) which is acceptable in most cases.
Since its roll-out more than 1200 patches have been checked and rated, a lot of potentially Gerrit regression avoided and more importantly we have prevented the NoteDB code to start diverging regarding stability from the current mainstream development.

How can re-trigger validation for a single change?

We have enabled anyone to trigger ad-hoc executions of the Gerrit validation flow using the following URL:
This is a standard Jenkins parametrized build that request the change-id to be built, as either SHA1 or number. Once the job is triggered the build will be executed and the validation feedback applied to your change, regardless of the previous build or validation status.

Gerrit User Summit & Hackathon 2015

Gerrit User Summit at Google Mountain View – CA

Gerrit user Summit 2015

Exciting times this year at the Gerrit User Summit and Hackathon 2015: the major contributors and players of the Gerrit community shared experiencing, opinions and news in an intense 7-days event in Google – Mountain View – CA.

The User Summit

The first two days have seen the User Summit at the centre of the stage: scalability, scalability and scalability have been the Leitmotif of the discussion. started the saga with the astonishing numbers of the two years growth:

  • 6.5K users (+580%)
  • 41K changes (+1700%)
  • 16K projects (+530%)
  • 500GBytes (+500%)

The two years of live production experience with users coming from GitHub have highlighted problems (replication, repositories sharding, multi-master) and possible solutions, ranging from Gerrit Virtual Private Hosting to the on-premises deployment integrated with BitBucket and GitHub:Enterprise.
Ericsson continued with a very detailed description of how Gerrit is used as “Enterprise Washing Machine” of all code that goes through the development pipeline: scalability and control are the fundamental keywords that were repeatedly mentioned and enforced.
The replication across sites have been massively improved regarding performance and stability since the introduction of Git/HTTPS as the main protocol for replication, as previously advised by GerritForge in 2014.
The first day ended with Google smashing out everyone his hypersonic numbers:

  • 1.6M changes / 3.8M patch-sets
  • 240 Gerrit virtual nodes
  • 2.5M repositories

The second day was all projected on the future of Gerrit, with three very interesting features coming soon.

Gerrit 3.0 and NoteDB

Dave Borowitz presented the status of the replacement of Gerrit DBMS
with a 100% open standard solution based on commit notes, implemented by all OpenSource and Commercial “flavours” of Git. The solution will allow interoperability with other code-review implementations (e.g. Phabricator) and fully enable reviews replication and off-line operations.
The new DBMS-free version of Gerrit will be called the Ver. 3.0 and it will be the next version after current Gerrit master (Ver. 2.13) gets released. released.

Gerrit PluginManager: one plugin to rule them all

Luca Milanesio presented a new vision on how to discover and install plugins on the Gerrit platform: Gerrit PluginManager. We should not bundle more and more plugins with Gerrit, which eventually would lead to an explosion of the WAR file-size. You can now install only a “plugin-manager” which then guide you through the “one-click” set-up of all the others.
Differently from similar solutions such as Jenkins Update Centre, the Gerrit PluginManager is based on the live status of the plugins and their compatibility with Gerrit: as soon as one plugin gets patched and successfully compiled with a version of Gerrit, it will automatically be listed and made available by the PluginManager. Additionally GerritForge will provide a list of certified and guaranteed plugins that have been successfully tested with Gerrit.

PolyGerrit, the new web-component UX for Gerrit.

Andrew Bonventre is the Googler that is driving the transformation of Gerrit UX to the new Polymer platform, however for personal reasons he was not able to attend the Summit. Dave Borowitz replaced him and unveiled that will be the (very) near future of Gerrit UX: no more GWT and complex and black magic transforming Java in obscure JavaScript, the future is coming through web-components, a new emerging and promising standard for the HTML and modern web-browsers.
Despite the UX being at very early stages, Dave was able to showcase a fully functional list of changes and search box powered by Polymer and calling Gerrit REST-API, really fast and promising!

Gertty, the text-only Gerrit Code Review.

On the complete opposite side, why not using Gerrit from an 80×25 text-only console? Gertty is an astonishing 100% char-based console, all based on Gerrit REST-Api and a local SqLite local DB for caching changes. Allows complete off-line operations and synchronisation with Gerrit changes. Productive and effective while you are on the go.

CollabNet and Gerrit tuning cheat-sheet

CollabNet presented a useful four pages brochure to guide through the tuning of a Gerrit set-up for a small, medium or large installation. Based on their experience of running TeamForge SCM, the commercial fork of Gerrit Code Review based on their existing TeamForge ALM proprietary solution, they have been able to experiment the Gerrit default settings and learn how to adjust them to leverage the full power of your setup.
The audience appreciated the effort and encouraged CollabNet to post all the findings as Gerrit reviews to get the code-base better and improve the default settings of the set-up.

Gerrit and Jenkins Workflow dance together with Docker.

Cloudbees presented a very effective demo on how to use Gerrit and Jenkins Workflow plugin to implement a real-life Continuous Delivery Pipeline. The presentation leveraged the use of Docker images as previously presented by Stefano Galarraga in his “Gerrit and Jenkins Continuous Delivery Pipeline for BigData” talk. They both explained and showed how Code Review is key in implementing a successful and smooth code validation and roll-out. Stefano’s presentation made use of the new exciting feature of “topic submission” that enables the grouping and commit of multiple changes across repositories.

The Hackathon, topics and improvements.

Gerrit Hackathon 2015

A lot of code have been pushed during the hackathon:

  • 400 changes merged
  • 3 Gerrit version released

Gerrit metrics

Surely the hot-topic of the hackathon has been the introduction of a new pluggable metrics engine in Gerrit, currently half-merged in master branch. Gustaf demoed on how now is possible to use standard tools such as Graphite and JMX console to extract, display and graph the most relevant Gerrit metrics in real-time. This is similar to what the JavaMelody plugin was providing, with the added value of getting the data outside the Gerrit JVM and analyse with greater detail and a standard monitoring platform.


Gerrit master has been officially upgraded to allow the development of the new Polymer-based UX for Gerrit, code-named “PolyGerrit”. Gerrit master will need from now on the installation of NodeJS during development. This is needed for building and packaging the “vulcanised” version of Gerrit UX which contains the basic components of the user interface. At the moment the only thing that will be visible is the demo of list of changes presented by Dave Borowitz at the User Summit, however new changes are coming over and Google announced that they are targeting Q4-2015 for a first internal release of the new UX.

GerritForge CI Verifier

As Gerrit 3.0 will be completely revamped in terms of reviews persistence, the community pushed for having a stricter changes validation on both the old DBMS and new NoteDB based persistence. GerritForge extended the use of the CI system ( to cover the validation of every change / patch-set that will be uploaded to Gerrit from now on. This is a substantial improvement on the Code Review workflow of Gerrit itself and will hopefully contribute to a stable and solid Ver. 3.0 release next year.

Externalisation of Gerrit Hooks and Events to plugins

Qualcomm worked at completing the externalisation of Gerrit hooks and stream events into plugins. This change will allow to plug different events providers depending on the type of Gerrit set-up, single node or multi-master. One more important step towards an OpenSource implementation of Gerrit Multi-Master.
